Cut to length line for all type of sheet metal and production capacity.
PLC control with operator friendly graphic interface and detailed diagnostic system.
To factors determine the composition of the line, production capacity and final utilization of the sheet.
• Straigthener is required when the final product is used for general steel fabrication.
• Flattener is used for medium and high thickness for better flat surface.
• Leveler is required when the final product is used in electro-domestic industry, stainless steel and engineering industry.
• Start-stop cutting system is used for lower production capacity (10-20 m/min.).
• Roll feeder system is used up to 2.5 mm thickness and for speed about 30 m/min.
• Flying shear system is used for higher productivity (30 m/min).
• Rotary shear system is used higher productivity specially when sheet length is under 1 m and production speed (60 m/min).

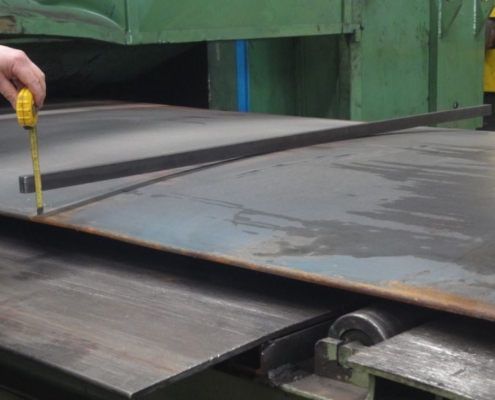

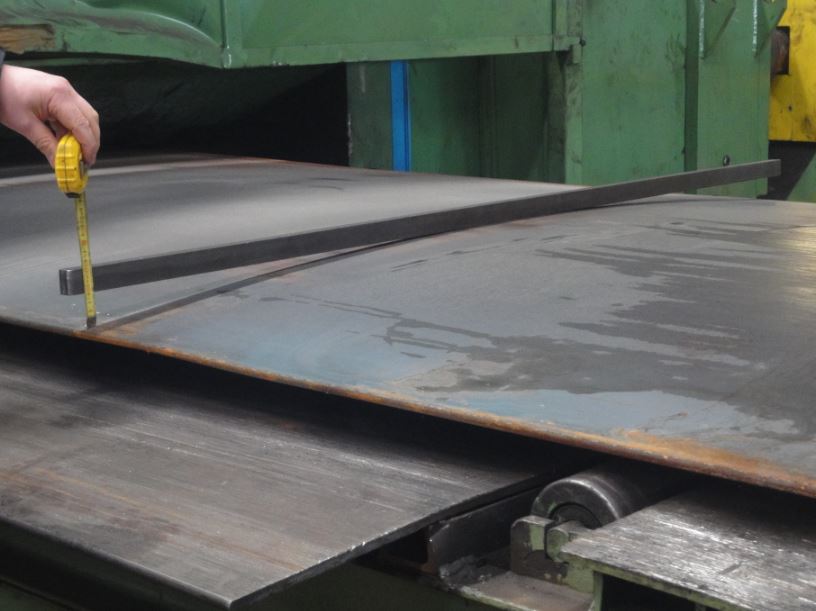

12 mm Before

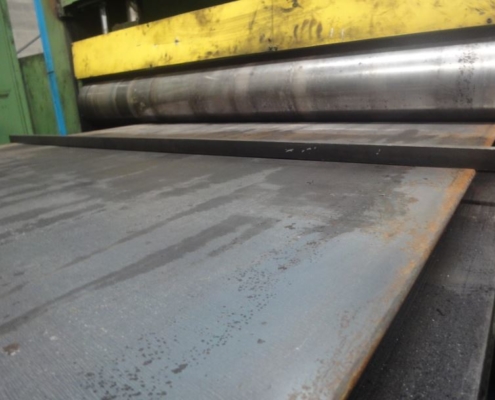

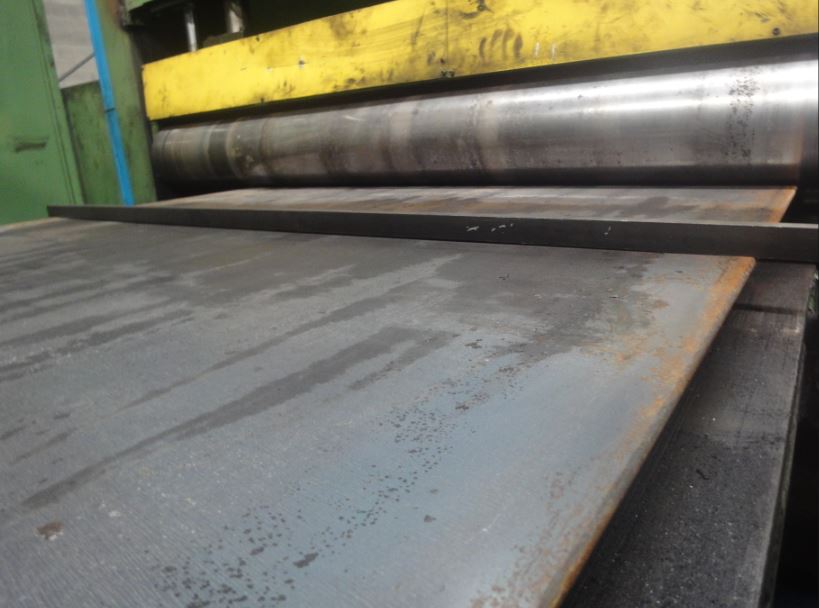

12 mm After

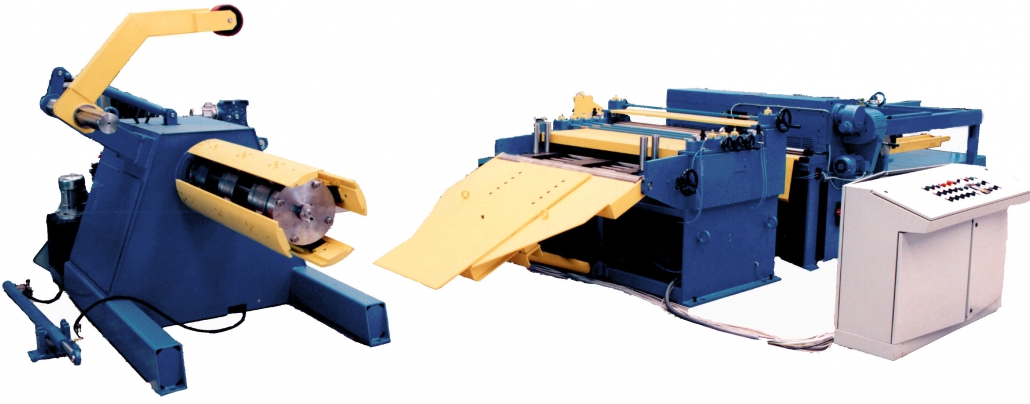

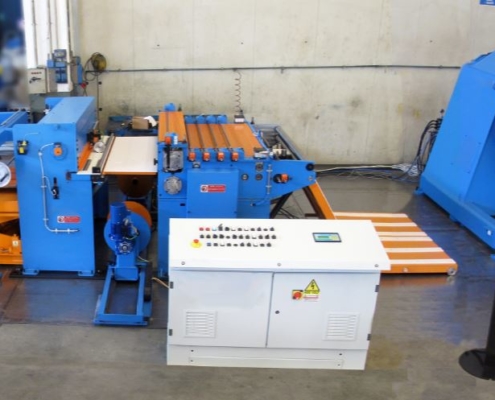

LTC 1502
2.5 mm Cut to Length line, start-stop system

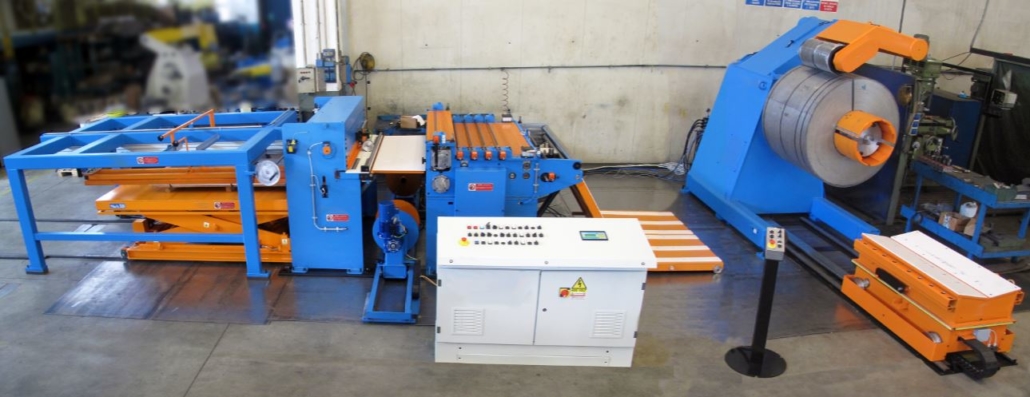

LTC 1502
2.5 mm Cut to Length line with stacker

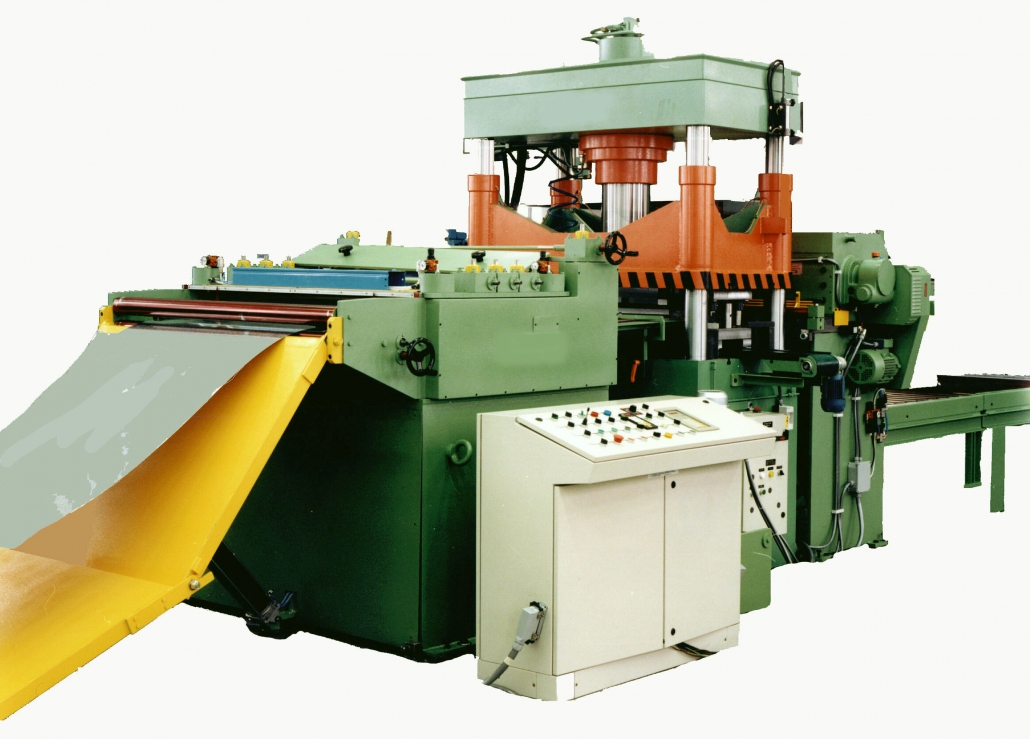

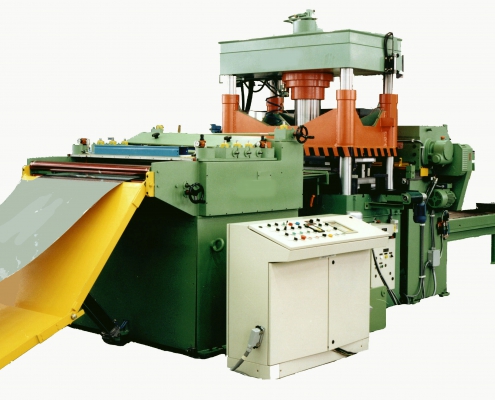

LTC shelf
Shelf Cut to Length line

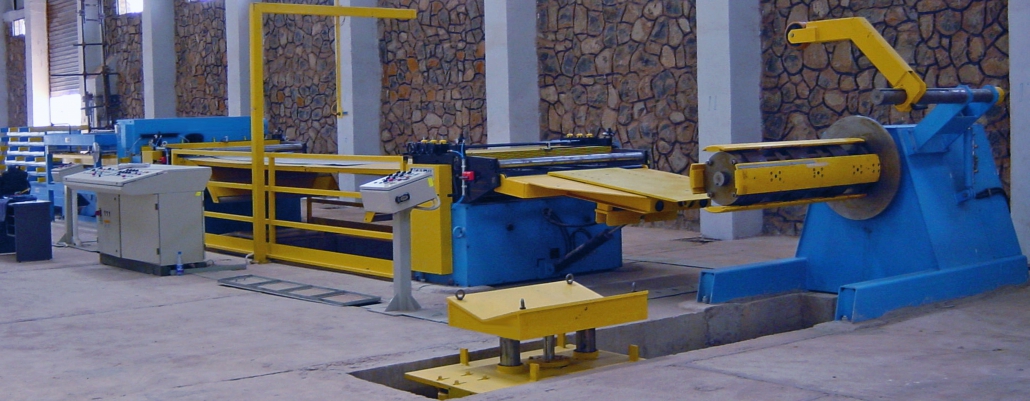

LTF 1525
2.5 mm Cut to Length line, roll feeder system

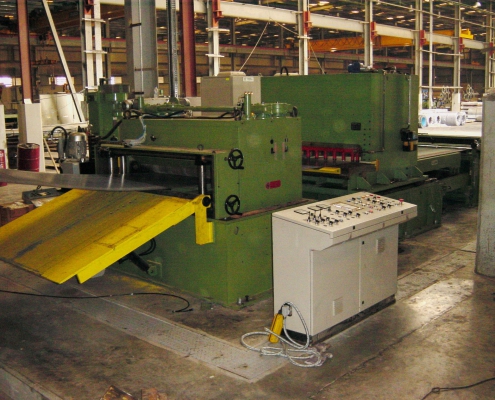

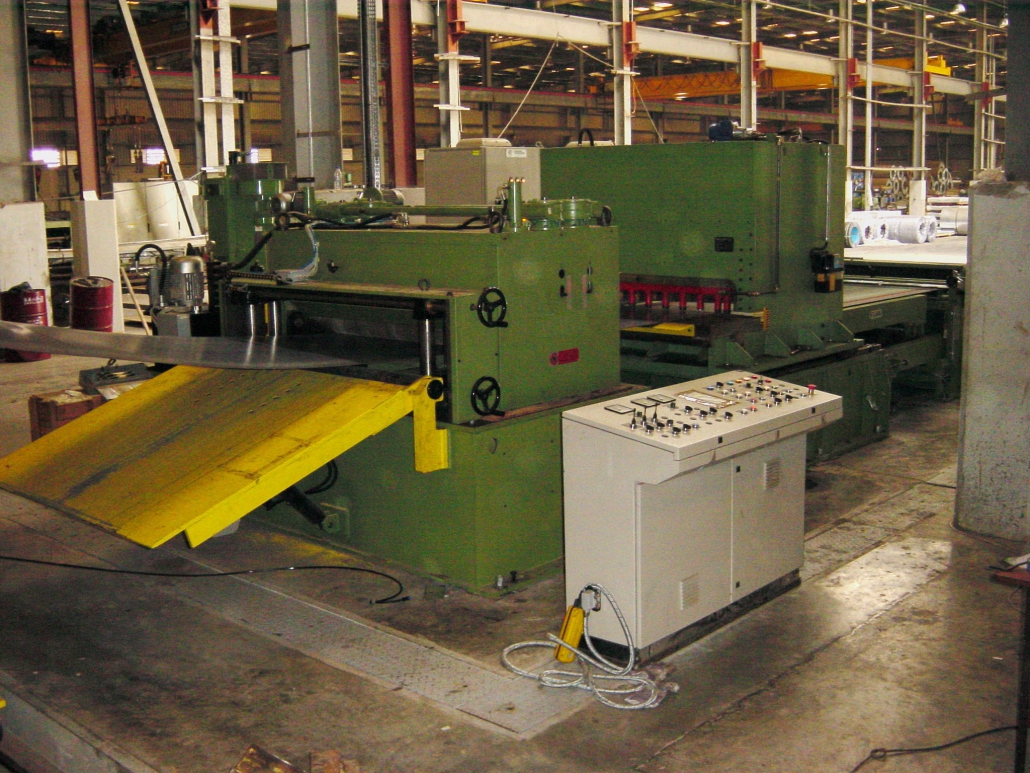

LTV1504
4 mm. Cut to Length line, flying shear system

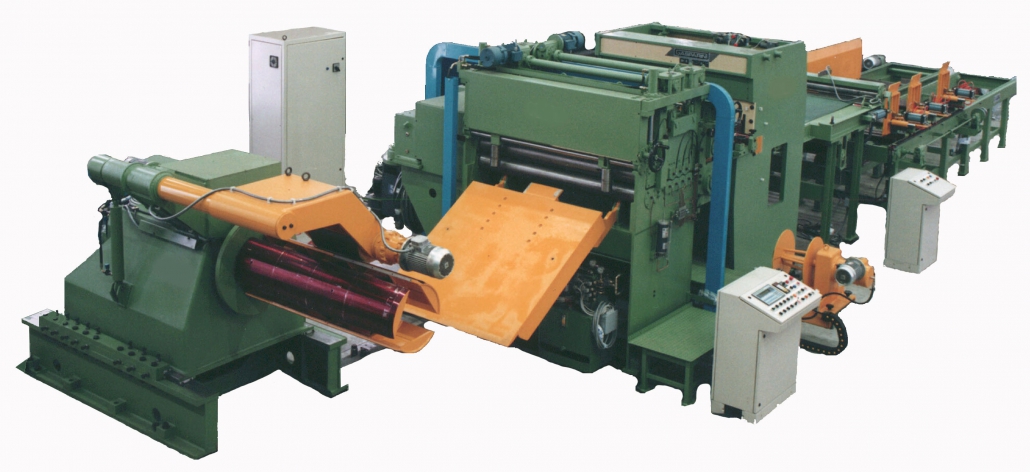

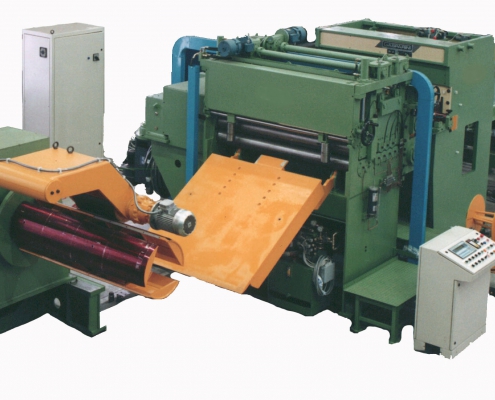

LTC 1506
6 mm Cut to Length line, start-stop system

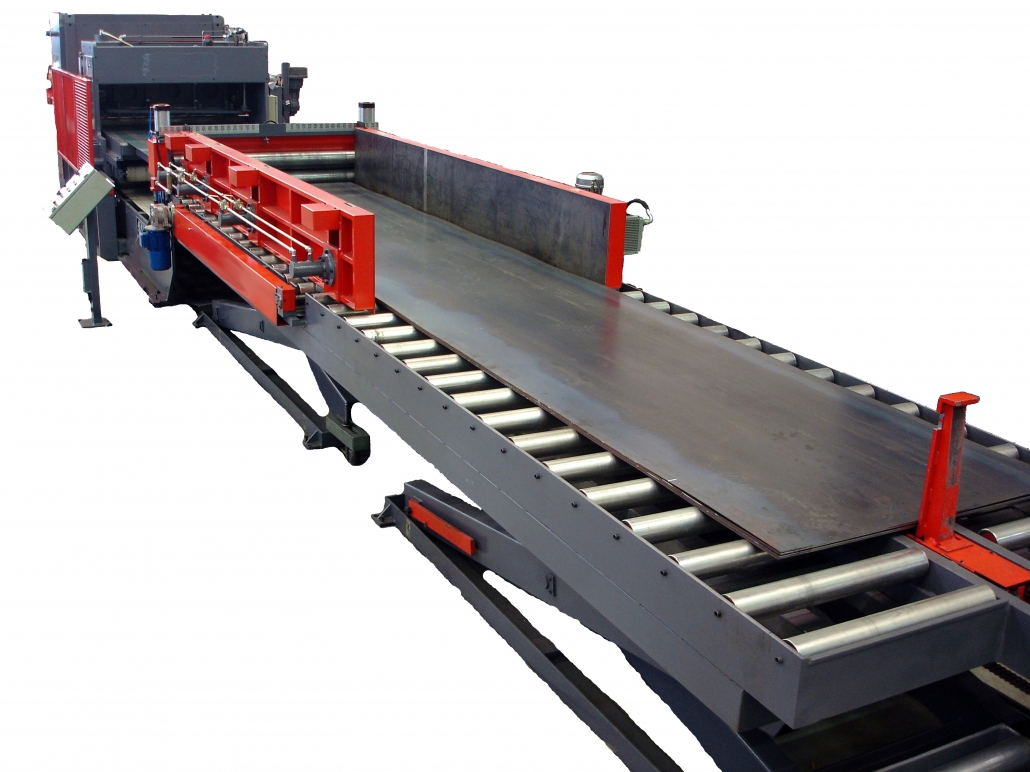

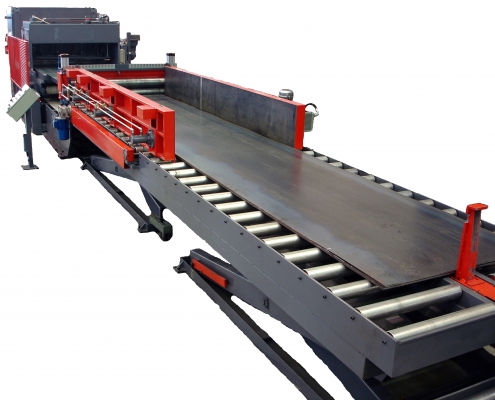

LTF 1506
6 mm. Cut to Length line, flying shear system

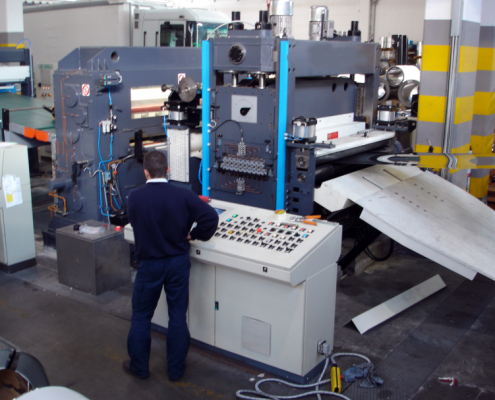

LTRSP 1503S
3 mm.stainless steel Cut to Length line, Leveler & Rotary shear system

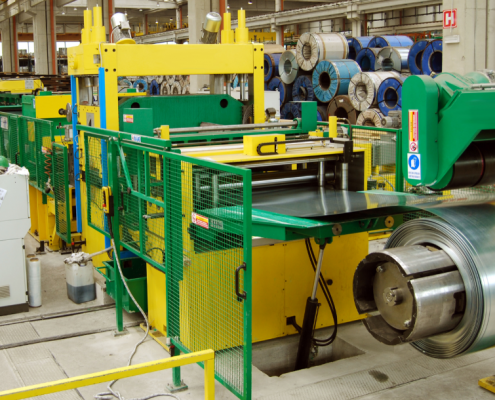

LTVSP1503
3 mm. Cut to Length line, Leveler & Flying shear system

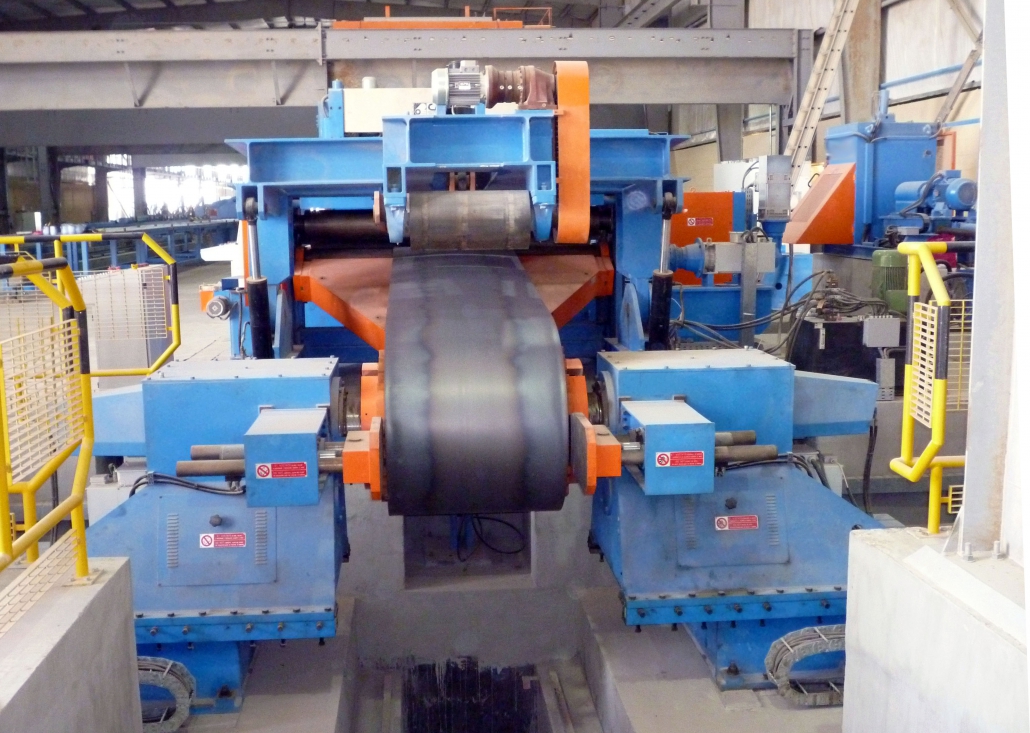

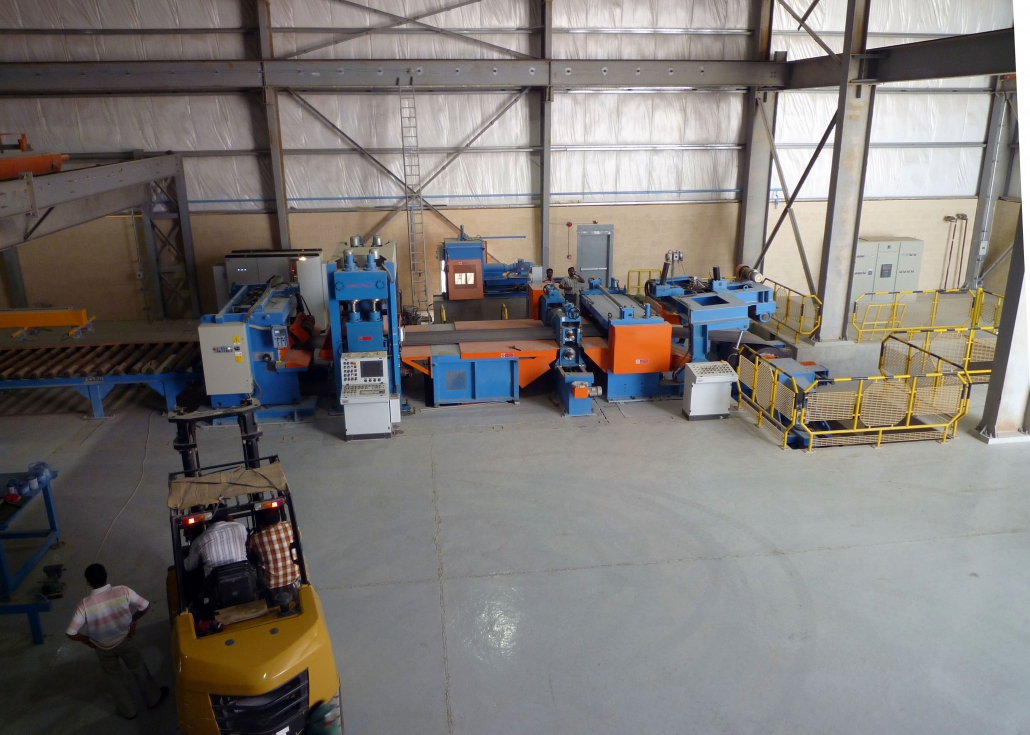

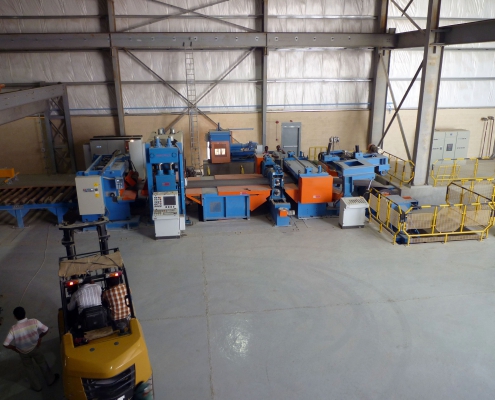

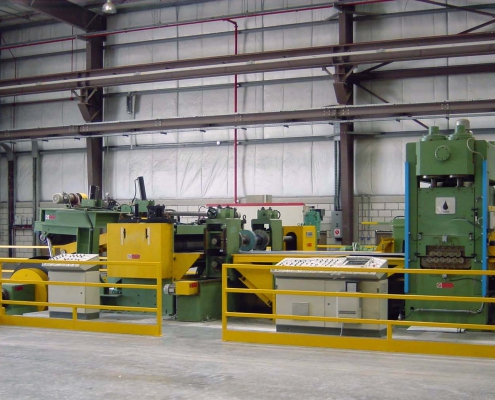

LTSP2008
10 mm Cut to Length line, Leveler & start-stop system
LTSP2008
30 ton Double Decoiler
LTSP20010
10 mm Cut to Length line, Leveler & start-stop system

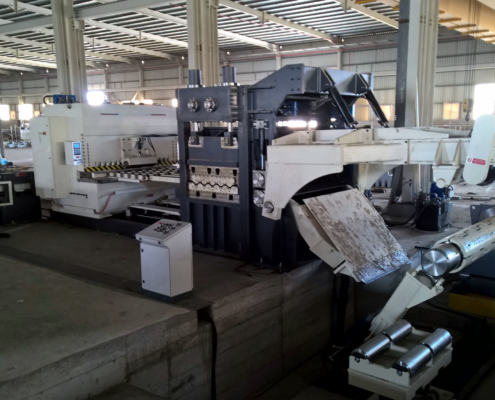

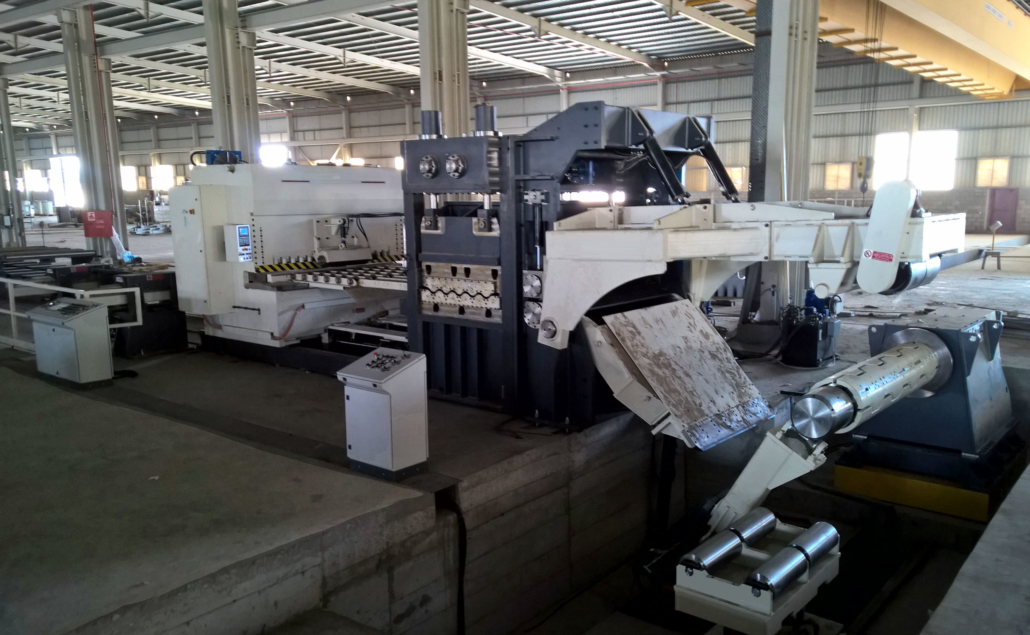

LS2012 INOX
12 mm Cut to Length line, Flattener & Flying Shear

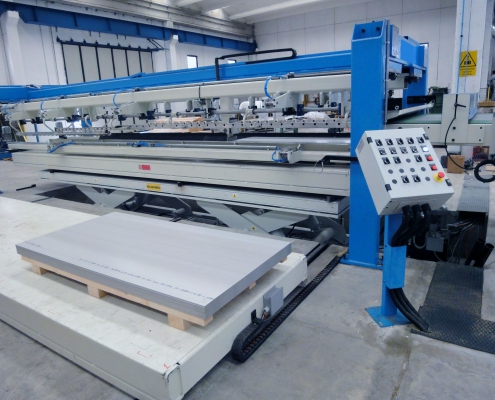

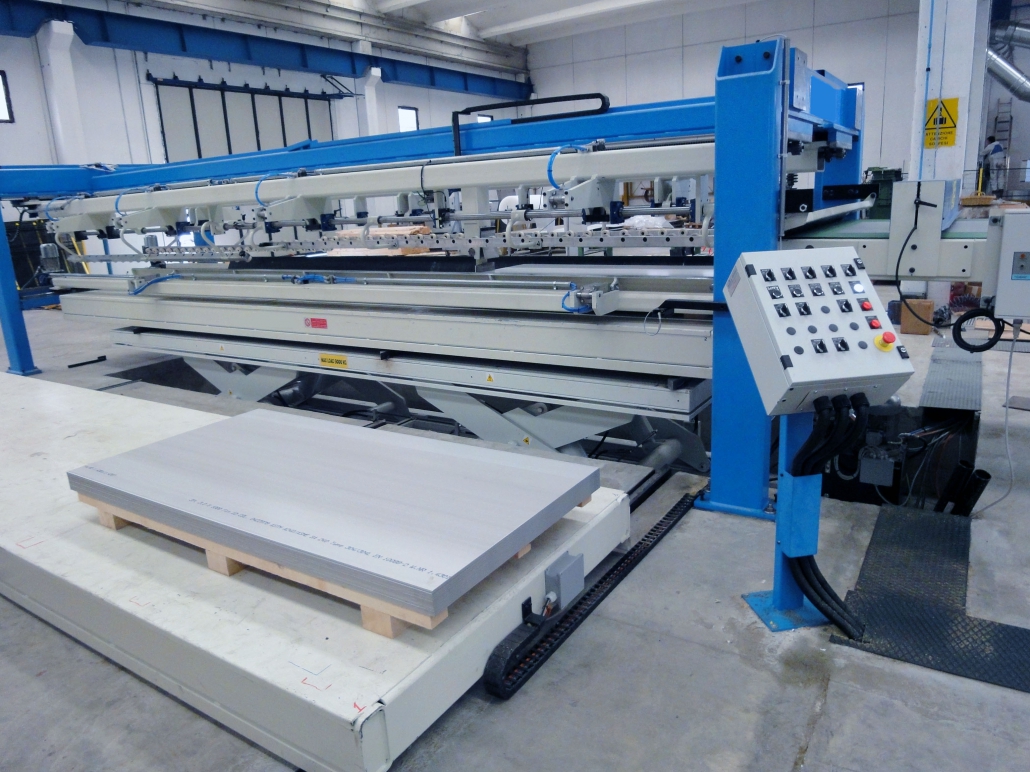

Stacker Inox
Stacker for stainless steel
